Chimeflash Doorbell System

The Sarabec Chimeflash is a wireless doorbell alerting system that has many great features such as ultra-bright flashing LED lights, extremely loud sound with volume control and also indicator symbols.

The chimeflash has been designed with Deaf and Hard of Hearing people in mind, but will also suit people with visual impairments or people who just need a good doorbell with excellent range and reliability as well as being very loud.

You can choose how you would like to be alerted, either by Sound only, flash Only or Sound and Flash together.

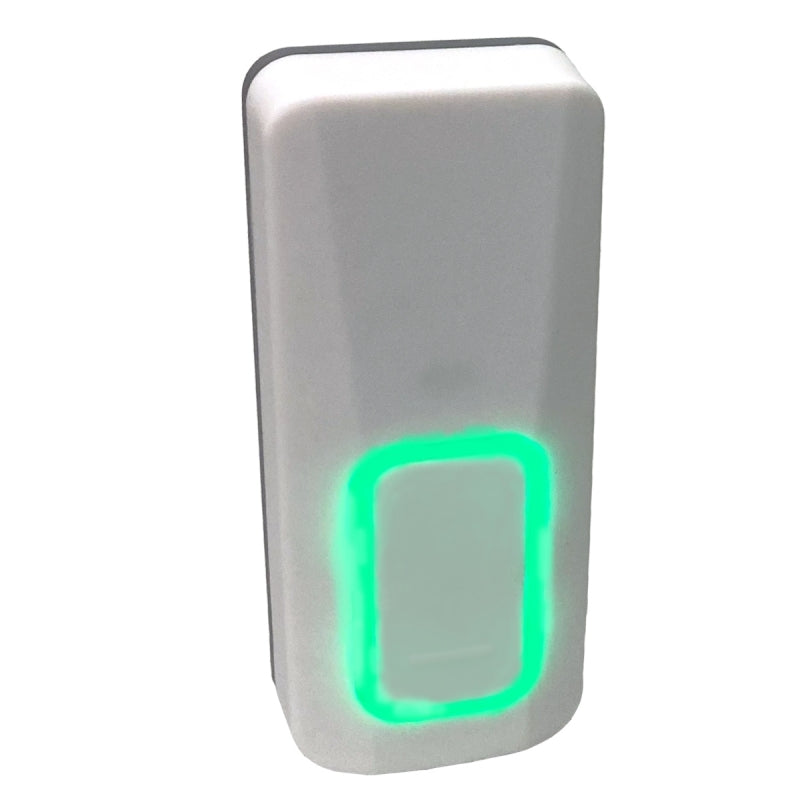

The Bellpush has a brilliant mounting system whereby you have a mounting plate that fixes to the door, frame or brickwork, you then attach the push to the plate, which means no more opening up of the bellpush when its time to change the battery, the bellpush is also waterproof and is rated to IP56. The bellpush uses the CR2032 coin cell battery type which is supplied with the system. There is a Green confidence light around the push button which lets you know that the push has been activated.

Up to three different transmitters can be paired up to one receiver, giving individual sound and LED indications for each transmitter.

What's in the box?

• Chimeflash Bellpush with Mounting Plate (Sticky Pad fitted)
• Chimeflash Receiver
• 3 x "C" size Alkaline Batteries
• 1 x CR2032 Battery
• 2 x Wallplugs
• 2 x Screws
• Instruction
• Drilling Template

Size

• Receiver: 145 mm x 105 mm x 52 mm
• Transmitter: 80mm x 32mm x 17mm

Features

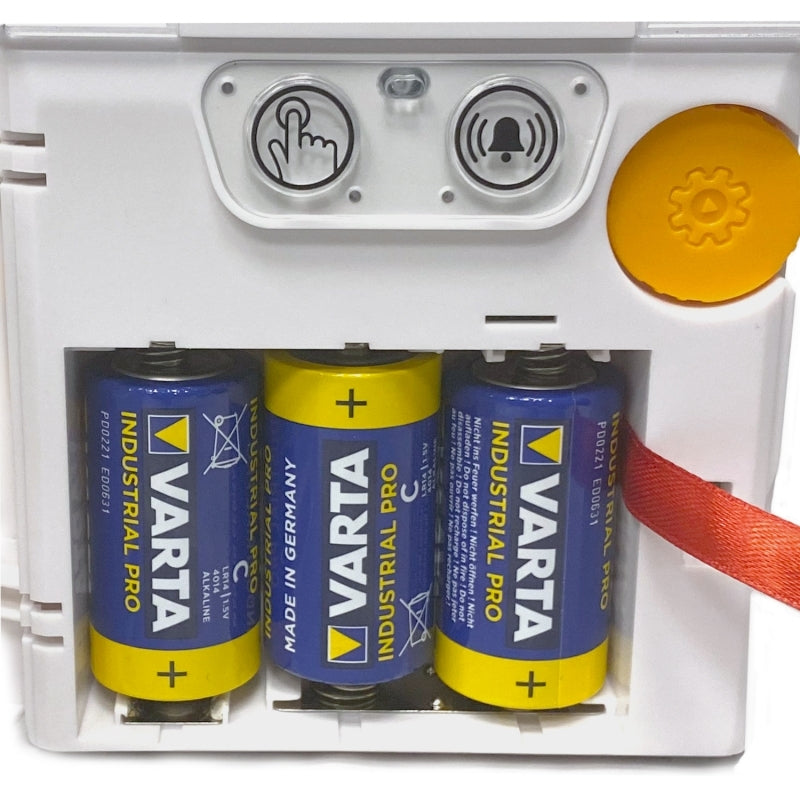

• Easy access battery compartment
• UP to three transmitters can be paired to one receiver
• Low Battery Indication
• Battery removal ribbon
• Multifunctional button/scroll wheel accessing the intuitive programming system
• Three alerting options: Sound only, Flash only or Sound and Flash together
• Ultra-bright flashing light
• indicator symbols
• 6 x Extra loud doorbell and telephone chime sounds of up to 100dB!
• Batteries Included!
• Up to 300m range in open space
• Optional Telephone Transmitter, Audio Transmitter and Mains Power supply available
• IP56 Weather rating.

Technical Information

Receiver:

• Transmission frequency 868.4 MHz
• Power supply 3x "C" size batteries or optional mains power supply (DC 12V/1A)
• Battery Expectancy: Up to 12 Months
• Volume up to 100 dB at 1 m distance
• Temperature range 0 to 40°C

Transmitter:

• Transmission range up to 300 m (in open areas)
• Max. transmission power <10 mW
• Power supply 1x button cell type CR2032
• battery Expectancy: Up to 2 years

• Receiver: 145 mm x 105 mm x 52 mm
• Transmitter: 80mm x 32mm x 17mm
