Motability

One Rehab Illusion

One Rehab Illusion

£23.29
£0.00 £23.29
Sale Sold out

Available In-store Only

Please call us on 01925 416624 (Warrington Golden Square), 01925 240064 (Warrington CIL), 01925 251079 (Birchwood MILS) or 0151 709 0121 (Liverpool MILS), or call in to one of our Centres where many of these products are available to try before you buy. Our experienced staff will help you choose the right product for you.

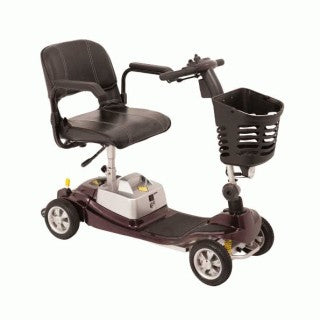

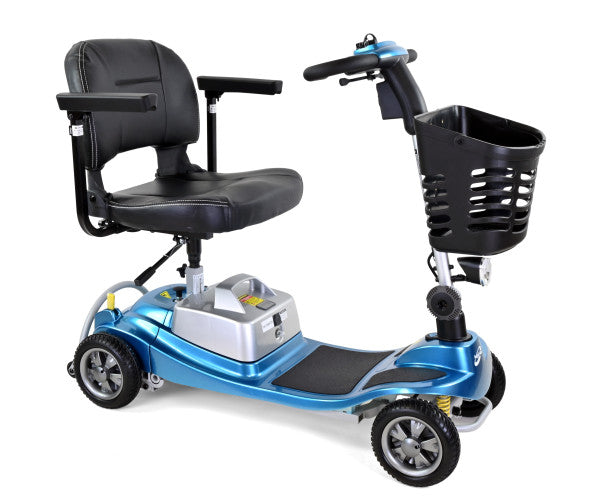

The Liberty Illusion scooter is an ultra-lightweight, transportable mobility scooter built with an aircraft-grade aluminum frame and a powerful lithium battery, making it ideal for lifting into and out of a car with ease. Its innovative split-apart design means the heaviest component weighs less than 10 kg, so it’s simple to disassemble and reassemble for travel or storage. Featuring full front and rear suspension, a comfortable adjustable seat and generous leg room, the Illusion delivers a smooth, comfortable ride and dependable performance up to around 4 mph, with a typical range of up to about 10 miles per charge.

Key Features:

  • Complete chassis made from ultra-lightweight aircraft-grade aluminium
  • All-round suspension giving exceptional comfort
  • Designed for lifting in and out of the car boot with ease
  • Very light lithium battery pack available in three sizes
  • Easy to take apart and reassemble in seconds
  • Shallow floor plate offers great leg room even for the taller user
  • Off-board via battery box allows you to keep the scooter in house and charge the battery pack in doors
  • Easy grip delta handlebar gives you full control when maneuvering
  • Comfortable and spacious deep foam covered seat

Specifications:

Model Illusion Illusion Endurance Illusion Epic
Speed (max) 4mph 4mph 4mph
Battery Type Lithium Lithium Lithium
Battery Size 10Ah 240Wh Lithium 21Ah 504Wh Lithium 34Ah 816Wh Lithium
Battery Weight 3 kg 4.5 kg 6 kg
User weight (Max) 18 st. (115 kg) 18 st. (115 kg) 18 st. (115 kg)
Heaviest part when disassembled 9.9kg 9.9kg 9.9kg
Total Weight (without batteries, arms or basket) 25.5 kg 25.5 kg 25.5 kg
Total Weight (without batteries) 28 kg 28 kg 28 kg
Total Weight (with standard batteries, without arms or basket) 25.5 kg 25.5 kg 25.5 kg
Total Weight (with standard batteries) 31 kg 31 kg 31 kg
Overall Length 1035 mm (41 in.) 1035 mm (41 in.) 1035 mm (41 in.)
Overall Width 490 mm (19 in.) 490 mm (19 in.) 490 mm (19 in.)
Overall Height 920 mm (36 in.) 920 mm (36 in.) 920 mm (36 in.)
Folded Height (tiller down/seat off) 450 mm (18 in.) 450 mm (18 in.) 450 mm (18 in.)
Tyres 194 mm (7.5 in.) 194 mm (7.5 in.) 194 mm (7.5 in.)
Tyre Type Puncture Proof Puncture Proof Puncture Proof
Suspension Adjustable Front & Rear Adjustable Front & Rear Adjustable Front & Rear
Lights Front LED Front LED Front LED
Charger 2 Amp Lithium 2 Amp Lithium 2 Amp Lithium
Charging Type Off-board via Battery Box/Tiller Charger Off-board via Battery Box/Tiller Charger Off-board via Battery Box/Tiller Charger
Climbing Gradient (Max) 6°

6°

 6°
Ground Clearance (Mid Frame) 55 mm (2 in.) 55 mm (2 in.) 55 mm (2 in.)
Turning Radius (Min) 1370 mm (54 in.) 1370 mm (54 in.) 1370 mm (54 in.)
Seat Deluxe Adjustable Deluxe Adjustable Deluxe Adjustable
Seat Width 460 mm (18 in.) 460 mm (18 in.) 460 mm (18 in.)
Seat Height 400-480 mm 400-480 mm 400-480 mm
Wheel Colour Silver Silver Silver
Basket Black Plastic Black Plastic Black Plastic
Tiller Lock Yes Yes Yes
Tiller Type Delta Delta Delta
Brake Electric Electric Electric
Frame Type Detachable Detachable Detachable
Warranty 1 Year 1 Year 1 Year
Controller PG S-Drive 45 Amp PG S-Drive 45 Amp PG S-Drive 45 Amp
Motor 120W 120W 120W
Overall Box Size 500Hx520Wx1060L 500Hx520Wx1060L 500Hx520Wx1060L
